Construction features
  • Structure entirely made of stainless steel.
  • Operator access doors made of plexiglass panels.
  • Carter blowers made of stainless steel side with sound absorbing panels.
  • Blowers with suction filters.
  • Collector /s with multi-jets of air in quantities sufficient to dry the bottle.
  • Air knife nozzles in stainless steel recordable.
  • Guide rails in stainless steel.
  • Single-wire ribbon structure (where you can use existing carrier)
  • Production of 2500/h containers / up to 10000/h containers
  • Ower from 4.5 kW to 9 kW inverter series
  • 2 to 4 blades of air
Contacts
drying bottles glass jars

Drying Bottles & Glass jars

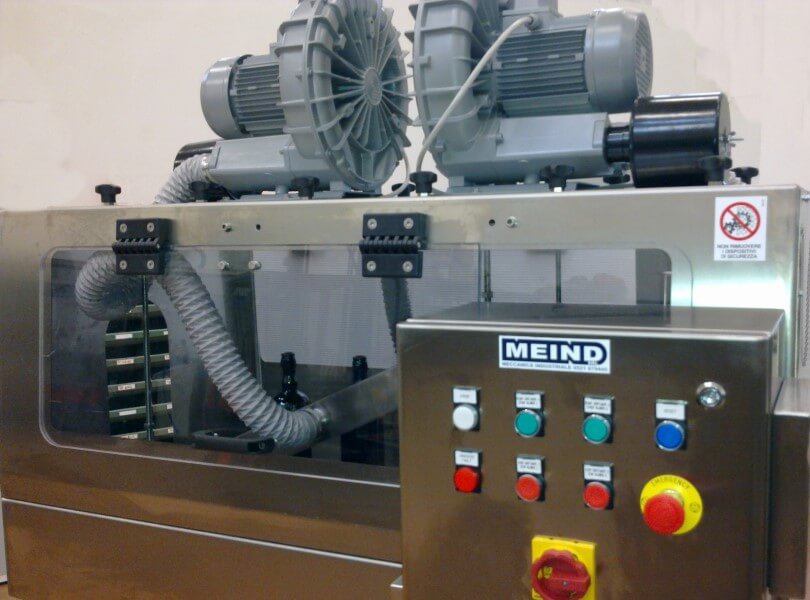

Tunnel of drying model AS-MATIC installed on a single-wire conveyor belt at the entrance of the labelmaker.

The tunnel operates with a mechanical blowing air pressure action (and a thermal heated air where required) which act on the body of the bottle.

The slight rotational movement of the containers allows to get the perfect drying and "consequently" the correct labeling.
